Subduction zones are the bridge between the Earth’s surface and the deep Earth (Hwang et al., 2021). Subduction transports crustal hydration minerals to the mantle, and the hydrous minerals in the subduction zone under the volcanic arc are often dehydrated under the temperature and pressure of the mantle, which leads to the generation of island arc magma (Zheng and Zhao, 2017). This process plays an important role in the water cycle of the deep Earth. In addition, the migration of water to the mantle has important geodynamic and geochemical significance. The dehydration of hydrous minerals in the mantle hydrates nominally anhydrous minerals there and affects the viscosity and density structure of the mantle (Hebert and Montesi, 2013). Moreover, dehydration of hydrous minerals also leads to the brittle fracture of plates, triggering medium-depth earthquakes (Zheng, 2019). Therefore, the structural stability and thermoelastic properties of hydrous minerals under high-pressure and high-temperature (high P-T) conditions are often regarded as a window through which to study the geodynamic process of the deep Earth (Nakao et al., 2016; Kakizawa et al., 2018; Liu et al., 2019; Zhang et al., 2019; Liu et al., 2021).
During the subduction process, the water-rich fluids react with the gneiss or metamorphic argillaceous rocks of the subducted continental crust along the wet solid phase line to form water-rich melts, which are granitic components and the main source of magmatic material in island arcs (Zheng, 2019). In addition, the Al-rich hydrous silicate minerals in the subduction zone can transport not only water but also Al to the deep mantle, and the entry of Al as a crustal element into the mantle will affect the composition of the mantle (Tropper and Manning, 2007). Diaspore (α-AlOOH), which contains 28.3 wt% water and has a wide range of temperature and pressure stabilities (Mao et al., 1994; Sugiura et al., 2018), is an important Al-rich hydrous mineral in subduction zones (Vanpeteghem et al., 2002; Sano et al., 2008; Wang and Yoshino, 2021). During the eclogite lithification of bauxite, diaspore decomposes into corundum at approximately 1073 K under 7 GPa and releases 6–8 wt% water (Grevel et al., 2000; Feenstra and Wunder, 2002). However, under cold subduction conditions, diaspore transforms to a high-pressure phase (δ-AlOOH) and continue to subduct to the core-mantle boundary (Sano et al., 2008). Therefore, the study about the thermal equation of state (EoS) and the high P–T stability of diaspore is of great significance for understanding the migration of Al and water in the deep Earth, especially in subduction zones.
The symmetry of diaspore is orthorhombic Pbnm. In the crystal structure of diaspore (Figure 1) (Hill, 1979), Al3+ occupies the center of the octahedron position, and the O atom is closely packed hexagonally along the a-axis. Adjacent [AlO6] octahedrons share four sides, forming “double rutile strings” parallel to the c-axis and connected with each other through corner sharing (Ewing, 1935; Friedrich et al., 2007a). There are two types of O atoms: O1 with corner sharing and O2 with edge sharing. H is chemically bonded to O2 and forms a hydrogen bond with O1.
FIGURE 1. Crystal structure of diaspore at ambient conditions with the style of ball-and-stick (A) and the style of polyhedron (B). Blue for aluminum, red for oxygen, light red for hydrogen. The crystal structure data is obtained from Hill, (1979) and it is drawn by VESTA software.
The pressure-volume (P-V) EoS of diaspore has been studied experimentally and theoretically (Table 1) (Mao et al., 1994; Xu et al., 1994; Winkler et al., 2001; Friedrich et al., 2007a, 2007b; Li et al., 2008). However, the previous P–V EoS results for diaspore are controversial. Xu et al. (1994) investigated the high-pressure behavior of diaspore using in situ synchrotron X-ray diffraction (XRD) up to ∼27 GPa with no pressure medium and obtained a zero-pressure bulk modulus KV0 = 227 (5) GPa, and its pressure derivative (K‘V0) was set to 4. Mao et al. (1994) also investigated the compressibility of diaspore up to 24.51 GPa with a methanol-ethanol (4:1) pressure medium by in situ synchrotron polycrystalline XRD and obtained KV0 = 168 (2) GPa, which is ∼26% lower than that of Xu et al. (1994). Subsequently, using an in situ synchrotron single-crystal XRD method, Friedrich et al. (2007a, and 2007b) investigated the P–V EoS of diaspore with two different pressure media (helium and methanol-ethanol (4:1)) up to ∼50 and ∼7 GPa, respectively, and obtained very consistent results for the bulk modulus (KV0 = 151 (2) GPa and 150 (3) GPa, respectively). However, the obtained bulk moduli of diaspore by Friedrich et al. (2007b) are still ∼11% lower than those of Mao et al. (1994). Additionally, Jiang et al. (2008) further studied the elastic properties of diaspore by the Brillouin light-scattering method up to 12 GPa with methanol–ethanol–water (16:3:1) pressure medium and obtained the adiabatic zero-pressure bulk modulus KS0 = 152 (1) (KV0 = 146 (1) GPa), which is relatively consistent with that of Friedrich et al. (2007b) but ∼13% lower than that of Mao et al. (1994) within their uncertainties (Mao et al., 1994; Friedrich et al., 2007b; Jiang et al., 2008). On the other hand, there are also some theoretical calculation studies on the P–V EoS of diaspore. Winkler et al. (2001) and Friedrich et al. (2007a) studied the P–V EoS of diaspore up to 50 GPa using the density functional theory method and obtained KV0 = 147 (2) GPa and 143.7 (9) GPa and K‘V0 = 4.5 (1) and 4.44 (6), respectively (Winkler et al., 2001). However, the K‘V0 of Friedrich et al. (2007a) is 8.8% lower than that of Winkler et al. (2001), while the KV0 of Friedrich et al. (2007b) is 2.2% lower than that of Winkler et al. (2001) with the same K‘V0. In summary, all recent studies by different methods acquired lower KV0 than Xu et al. (1994) and Mao et al. (1994). More importantly, Yoshino et al. (2019) has discussed the reason why Xu et al. (1994) yielded extremely high value of KV0 = 230 GPa, which is the data correction by Xu et al. (1994) is under high stress from the absence of a pressure medium.
To date, there have also been some experimental studies on the thermal expansion of diaspore at high temperatures (Holland et al., 1996; Grevel et al., 2000; Sugiura et al., 2018). Pawley et al. (1996) calculated the volume thermal expansion coefficient (αV0 = 4.0 (1) × 10–5/K) of diaspore up to 533 K based on high-temperature powder XRD data (Pawley et al., 1996). Subsequently, Grevel et al. (2000) recalculated the volume thermal expansion coefficient of diaspore at higher temperatures up to 1073 K using XRD and obtained αV0 = 2.8 × 10–5/K (Grevel et al., 2000), which is ∼30% lower than that of Pawley et al. (1996) (Pawley et al., 1996). Furthermore, Pawley et al. (1996) also calculated the axial thermal expansion coefficients of diaspore and obtained αa0 = 1.6 (2) × 10–5/K, αb0 = 1.3 (2) × 10–5/K and αc0 = 1.1 (2) × 10–5/K (Pawley et al., 1996). Recently, Sugiura et al. (2018) reinvestigated the axial thermal expansion of diaspore up to 698 K by single-crystal XRD and obtained αa0 = 0.903 × 10–5/K, αb0 = 0.828 × 10–5/K and αc0 = 0.770 × 10–5/K (Sugiura et al., 2018), which are ∼44%, ∼36 and ∼30% lower, respectively, than the results of Pawley et al. (1996). Thus, there is still great controversy regarding the thermal expansion coefficients of diaspore, which needs to be further investigated.
In this study, we investigated the thermoelasticity and stability of diaspore by in situ synchronous XRD and Raman spectroscopy methods at high pressure and high temperature. By fitting the present P-V and T-V XRD data, we obtained the thermoelastic parameters of diaspore at high pressures/temperatures. Furthermore, the P–T stability of diaspore in this experimental P-T range was determined using our high P-T XRD data and Raman spectral data. Finally, combined with the previous results, we discussed the P–T phase diagram and stability of diaspore and its great influence on water migration in the cold subduction zone.
Sample and Experiments
A natural, colorless and transparent diaspore sample with good crystal morphology was used in this study. As shown in Supplementary Table S1, the chemical composition of the diaspore sample was estimated as Al1.002Fe0.003OOH based on the results of electron microprobe analysis (EMPA) using a JXA-8230 electron microprobe in Chang’An University with an accelerating voltage of 15 kV, a beam current of 20 nA, and a beam diameter of 5 μm.
We conducted single-crystal XRD experiments up to 700 K and 13.42 GPa, powder XRD experiments up to 713 K under ambient pressure.
A short symmetrical diamond-anvil cell (DAC) and BX90-type external-heating DAC (EHDAC) (Kantor et al., 2012) were selected for ambient temperature and high pressure (up to 13.42 GPa) and high temperature and high pressure (up to 10.9 GPa and 700 K) single crystal XRD experiments, respectively. In the above two XRD experiments, the rhenium gasket, neon pressure medium, and gold pressure calibration material were selected. The sample size and thickness of diaspore are 70 × 80 μm2 and 22 μm, respectively.
In the in situ ambient pressure and high temperature (up to 713 K with 30 K temperature interval) powder XRD experiment, a Merrill-Bassett type DAC and the T301 gasket were used. The sample size and thickness of diaspore in the sample chamber are 120 × 100 μm2, and ∼110 μm, respectively.
In addition, the short symmetrical DAC and T301 gasket were used for the high-pressure Raman spectroscopy experiment. The maximum experimental pressure was ∼24.4 GPa, and the Raman spectrum collected from 100 cm−1–1200 cm−1. In all experiments, the pressure fluctuation range was not more than 0.1 GPa, and the temperature fluctuation range was not more than 1 K before and after each spectrum collection.
The ambient temperature and high pressure single-crystal XRD experiment was conducted at 13-BMD station, GSECARS, APS, while the high temperature and high pressure single-crystal XRD experiment was conducted at 13-BMC station, GSECARS, APS. LaB6 powder was used as the diffraction standard at both 13-BMD and 13-BMC stations (Fan et al., 2010; Zhang et al., 2017; Huang et al., 2020; Xu et al., 2020). However, the high-temperature and ambient-pressure powder XRD experiment was carried out at station 4W2, Beijing Synchrotron Radiation Station (BSRF), and calibrated by CeO2 powder diffraction spectrum. Room-temperature and high-pressure Raman spectroscopy experiments were carried out at the Center for High Pressure Science and Technology Advanced Research. Details of the single crystal XRD experimental setup and cell assembly were described in Fan et al. (2010) and the powder XRD experiment were described in Huang et al. (2020) and Xu et al. (2020).
P-V Equation of State
The unit-cell parameters of diaspore up to 13.42 GPa were refined by APEX3 software from single-crystal XRD, as shown in Supplementary Table S2 and Figure 2. The XRD patterns of diaspore showed that no phase transition occurred throughout the whole pressure range in this study (Supplementary Figure S1).
FIGURE 2. Volume compression (V/V0) of diaspore at high pressure and room temperature. The black solid circles represent the data points measured in this experiment, and the black lines were obtained by BM3 EoS-fitting with K‘V0 unfixed. The black hollow triangles represent the data points of Mao et al. (1994), the blue hollow triangles represent the data points of Xu et al. (1994), the purple hollow squares represent the data points of Grevel et al. (2000), and the red hollow diamonds represent the data points of Friedrich et al. (2007a, and 2007b).
Furthermore, the P-V data (Supplementary Table S2) were fitted using the third-order Birch-Murnaghan EoS as follows:
Where V0, KV0, and K‘V0 are the unit-cell volume, isothermal bulk modulus, and its pressure derivative at zero pressure, respectively. With all parameters unfixed during fitting, we yielded V0 = 118.04 (3) Å3, KV0 = 153 (2) GPa, and K‘V0 = 2.5 (3) for diaspore. With fixed K‘V0 = 4, the fitting results yielded V0 = 118.15 (4) Å3 and KV0 = 143 (1) GPa.
Figure 2 shows pressure-induced volume compression (V/V0) of diaspore in this study and previous studies (Mao et al., 1994; Xu et al., 1994; Grevel et al., 2000; and Friedrich et al., 2007a and 2007b). The relationship between the Eulerian definition of finite strain fE (fE = [(V0/V)2/3 – 1]/2) and “normalized stress” FE (FE = P/3fE(1 + 2fE)5/2) is shown in Figure 3 (Angel, 2000). The weighted linear fit of the data points yielded the intercept value of FE (0) = 154 (1) GPa, which is consistent with the isothermal bulk modulus obtained by the third-order Birch–Murnaghan EoS (KV0 = 153 (2) GPa). Moreover, it is clear from Figure 3 that the data points lie on an inclined straight line with a relatively large negative slope, thus indicating that K‘V0 = 2.5 and the third-order Birch-Murnaghan EoS are reasonable descriptions of the P–V data in this study.
FIGURE 3. Volume Eulerian strain–normalized pressure (FE–fE) plot. The solid line is the linear fit to the data.
The unit-cell parameters of the a-, b- and c-axes as a function of pressure are summarized in Supplementary Table S2 and plotted in Figure 4. By fitting a “linearized” third-order Birth-Murnaghan EoS and following the procedure implemented in the EoSFit7c program (Angel, 2000), we can obtain the axial-EoS parameters Ka0 = 137 (5) GPa, Kb0 = 169 (7), and Kc0 = 178 (6) GPa for the a-, b- and c-axes with fixed K‘0 = 4, respectively. Then, the axial compressibilities (with
, where K0 is the axial bulk modulus under ambient conditions and β is the compressibility) of diaspore were found to be βa = 0.00243 GPa−1, βb = 0.00197 GPa−1 and βc = 0.00187 GPa−1 for the a-, b– and c-axes, respectively. The ratio among the lattice compressibility parameters, βa:βb:βc = 1.30:1.05:1.00, shows that diaspore has a weak axial compressional anisotropy.
FIGURE 4. Pressure dependence of the unit-cell parameters a, b, and c of diaspore at ambient temperature. The error bars for the data points are not displayed because they are smaller than the symbols.
High-temperature synchrotron powder XRD experiments were conducted up to 713 K at ambient pressure. Figure 5 shows some typical full XRD patterns at high temperatures for diaspore. From Figure 5, we can find that as the temperature increased, all the peaks shifted continuously toward lower 2θ, but the overall pattern did not change; hence, the high-temperature XRD patterns of diaspore showed that no phase transformation occurred at high temperatures up to 713 K. Supplementary Figures S2A–D shows the typical Le Bail profile fitting results of the XRD profiles at 298, 413, 533 and 713 K. The full spectrum fitting results of unit-cell parameters and volumes (a, b, c, and V) of the Le Bail profile at each temperature are also shown in Supplementary Table S3.
FIGURE 5. Typical X-ray diffraction patterns of diaspore from powder X-ray diffraction experiments at ambient pressure and high temperature.

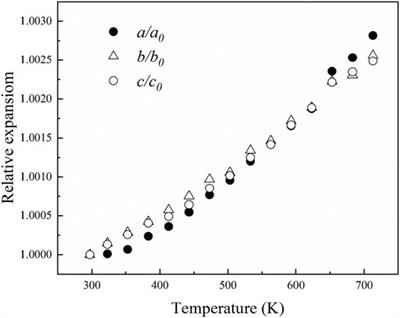

Figure 6 shows the variations of a/a0, b/b0, c/c0 and V/V0 with the temperature for diaspore in this study and previous studies. In general, a/a0, b/b0, c/c0 and V/V0 correlate continuously with temperature. As the temperature increases from 297 to 713 K, a, b and c increase by 0.3%, 0.26 and 0.25%, respectively, and volume increases by 0.79%. We used Fei’s thermal expansion equation (Fei, 1995) to fit our high-temperature XRD data:
Where VT represents the unit-cell volume at high temperatures and ambient pressure, V0 represents the unit-cell volume at ambient conditions, and Tref is the reference temperature. α0, α1 and α2 are the three parameters used to describe the relationship between the thermal expansion coefficient and the temperature in the form of αT = α0 + α1T + α2T−2. Since our experimental temperature range was limited, we fixed α1 and α2 as 0 in the fitting. The volumetric and axial thermal expansion coefficients under ambient conditions are αV = 2.7 (2)×10–5 K−1and αa = 1.13 (9) × 10–5 K−1, αb = 0.77 (5) × 10–5 K−1, and αc = 0.85 (9)×10–5 K−1. Furthermore, from Figure 7, the axial thermal expansion coefficients of diaspore along the b-axis and c-axis are comparable, while the thermal expansion coefficient along the a-axis is the smallest at 300–600 K but is the largest above 600 K. Therefore, diaspore has slightly anisotropy of thermal expansion. Moreover, the single-crystal XRD experiments of diaspore under high P–T conditions show that diaspore can exist stably at conditions of up to 700 K and 10.9 GPa.
FIGURE 6. The change of unit-cell parameters and unit-cell volume with increasing temperature. The black solid circles represent the data points of this study, the hollow squares represent the data points of Pawley et al. (1996) and hollow triangles represent the data points of Sugiura et al. (2018).
The high-pressure Raman spectroscopy experiment was conducted up to ∼24.4 GPa. To study the lattice vibration modes of Al-O-Al and AlO6 polyhedrons, Raman spectra were collected during the experiment ranging from 150 to 1300 cm−1. There are a total of 11 peaks corresponding to five vibration modes: ν1-a rotation of two edge shared AlO6, ν2-Al–O–Al symmetric stretching, ν3-Al–O–Al deformation, ν4-Al–O–Al bending, and ν5-OH bending (Ruan et al., 2001; Juan-Farfán et al., 2011). The nine peaks with wave numbers less than 1000 cm−1 are lattice vibration modes (ν1, ν2, ν3, and ν4), which mainly include the rotational vibration of AlO6 and the stretching, bending and deformation vibration of Al–O–Al (Ruan et al., 2001; Juan-Farfán et al., 2011). The remaining two peaks are the OH bending vibration mode (ν5), whose wave numbers are 1050.3 and 1189.9 cm−1 (Delattre et al., 2012). Figure 8 shows that with increasing pressure, the Raman peak moves toward the high wave number direction, and the intensity increases. Figure 9 shows that the wave number of each peak increases linearly with increasing pressure. However, the absence of Raman peaks with wave numbers of 154.3 and 1050.3 cm−1 is due to the weak peak intensity under high pressures. The missing Raman peak with a wave number of 1189.9 cm−1 at high pressures is mainly due to the peak moving toward the high wave number, which exceeds the wave number range in this study. Table 2 summarizes the Raman spectra of diaspore in this and previous studies at high pressures, showing that the pressure derivative (dω/dP) of the Raman shift of diaspore is in the range of 0.33–6 cm−1/GPa, and the Grüneisen parameter (γ = (dω/dP) × KV0/ω0, where ω0 is the wave number at zero pressure) is in the range of 0.11–2.27.
FIGURE 8. Representative Raman spectra of diaspore up to 24.4 GPa ν1, a rotation of two edge shared AlO6, ν2, Al–O–Al symmetric stretch, ν3, Al–O–Al deformation, ν4, Al–O–Al bending, and ν5, OH bending mode.
FIGURE 9. Pressure dependence of the observed Raman modes for diaspore up to 24.4 GPa ν1, a rotation of two edge shared AlO6, ν2, Al–O–Al symmetric stretch, ν3, Al–O–Al deformation, ν4, Al–O–Al bend, and ν5, OH bending mode.
Juan-Farfán et al. (2011) obtained 22 Raman peaks in the range of 150–1300 cm−1 by theoretical calculation. However, only 13 Raman peaks were observed in the same wave number range in experiments (Ruan et al., 2001; Juan-Farfán et al., 2011) because the other peaks were too weak to be observed in the experiments (Ruan et al., 2001; Juan-Farfán et al., 2011). Compared with the experimental result of Juan-Farfán et al. (2011), this study has three extra peaks (448.6, 611.3, and 1189.9 cm−1) and one missing peak (793 cm−1). Compared with the experimental result of Ruan et al. (2001), this study has one extra peak (154.3 cm−1) and two missing peaks (381 and 790 cm−1). The cause of this phenomenon is unknown. However, except for these different peaks, our experimental results are basically consistent with those of previous experiments (Table 2) (Greene et al., 1994; Ruan et al., 2001; Juan-Farfán et al., 2011; Delattre et al., 2012).
Based on the experimental results of the Raman spectra, the dω/dP and isothermal Grüneisen parameters are calculated in this study (Table 2). The value range of dω/dP was 0.91–4.94 cm−1/GPa by theoretical calculation and 0.33–6 cm−1/GPa according to experiments (Juan-Farfán et al., 2011). The range of experimental results is wider than that of the theoretical calculation. Compared with the experimental results of Juan-Farfán et al. (2011), this study shows that the value of dω/dP of ν5 is greater than that of the other vibration modes (ν1, ν2, ν3 and ν4). Because ν5 corresponds to the vibration mode of OH bending with increasing pressure, the vibration of OH bending is easier, resulting in a larger dω/dP value. Except for the difference in ν5 value, our experimental results are basically consistent with the experiment of Juan-Farfán et al. (2011).
The value range of the Grüneisen parameter is 0.32–1.59 by theoretical calculation and 0.11–2.27 by experiment. The experimental results show a wider range than the theoretical results. The value of the Grüneisen parameter obtained by this experiment at 1050.3 cm−1 is 0.88, while the value of the Grüneisen parameter obtained by the experiment of Juan-Farfán et al. (2011) is 0.3 at 1048 cm−1, which is 66% lower than that in this study. Except for the abnormal value of the Grüneisen parameter at 1050.3/1048 cm−1, the difference between the Grüneisen parameter in this study and that in previous studies is less than 25%. Therefore, the isothermal Grüneisen parameters of the Raman peaks obtained by this study are basically consistent with previous studies.
In conclusion, our high-pressure Raman spectroscopy is consistent with previous results and shows that there is no phase transition of diaspore at room temperature and high pressures up to 24.4 GPa.
P-V Equation of State
To date, the P–V EoS of diaspore has been investigated extensively with various experimental techniques. Of these investigations, Xu et al. (1994), Mao et al. (1994), and Friedrich et al. (2007a, and 2007b) used high-pressure XRD methods to study the P–V EoS of diaspore. Table 1 summarizes the bulk moduli and their pressure derivatives for diaspore determined with various experimental techniques.
As shown in Table 1, the bulk modulus and its pressure derivative of the diaspore obtained in this study are KV0 = 153 (2) GPa and K‘V0 = 2.5 (3), respectively. If K‘V0 is set to 4, KV0 = 143 (1) GPa. The KV0 values from the literature exhibit discrepancies with each other, ranging from 121.2 to 227 GPa. Xu et al. (1994) reported a significantly higher value (227 GPa) by DAC with no pressure medium. Subsequently, Mao et al. (1994) obtained KV0 = 168 (2) GPa and K‘V0 = 3 (1) for diaspore using methanol-ethanol (4:1) pressure medium. However, their maximum experimental pressure reached 24.54 GPa, which exceeded the hydrostatic pressure limit (∼11 GPa) of the methanol-ethanol (4:1) pressure medium. Thus, the results of Xu et al. (1994) and Mao et al. (1994) should be affected by the nonhydrostatic pressure condition. Later, Friedrich et al. (2007b) reinvestigated the P–V EoS of diaspore using DAC with two different pressure mediums (methanol-ethanol (4:1) and helium) and obtained KV0 = 150 (3) GPa and 151 (2) GPa with fixed K‘V0 = 4. The obtained KV0 value (143 (1) GPa) in this study with fixed K‘V0 = 4 is slightly smaller than the results (150 (3) GPa and 151 (2) GPa) of Friedrich et al. (2007a, and 2007b) within their uncertainties.
Obviously, as shown in Figure 2, the data points of Mao et al. (1994) are consistent with our data points under pressures less than 12.0 GPa. Therefore, we refitted the P-V data of Mao et al. (1994) at pressures within ∼11.7 GPa and obtained KV0 = 140 (3) GPa with fixed K‘V0 = 4, which is consistent with the result of this study (KV0 = 143 (1) GPa) within their uncertainties. Moreover, the obtained KV0 value in this study is also very consistent with the results of previous ultrasonic interferometry (KV0 = 145.3 (4) GPa) and Brillouin light scattering studies (KV0 = 146 (1) GPa) (Table 1) (Haussuhl, 1993; Xu et al., 1994; Grevel et al., 2000; Jiang et al., 2008).
In summary, we infer that the reasonable ranges of the bulk modulus and its pressure derivative of the diaspore should be 140–153 GPa and 2.4–4.5, respectively.
The axial compressibilities of diaspore obtained in this study are Ka0: Kb0: Kc0 = 1.00:1.23:1.30 (βa: βb: βc = 1.30:1.05:1.00), which shows slight axial compression anisotropy. Friedrich et al. (2007a) also obtained the axial compressibilities of diaspore with Ka0: Kb0: Kc0 = 1.00:1.73:1.76 (βa: βb: βc = 1.77: 1.02:1.00) up to 50 GPa with a helium pressure medium. The axial compressibilities of this study are consistent with the axial compression trend of Friedrich et al. (2007a). Both studies show that the c-axis is the least compressible, followed by the b-axis and a-axis, because the Al-Al and O-O bonds are almost parallel to the c-axis, which makes the c-axis the hardest axis. Although there is no bond parallel to the b-axis, the angle between all bonds and the b-axis is 20°–30°, while the angle between all bonds and the a-axis is greater than 65°, which makes the a-axis the easiest to compress (Li et al., 2008). Furthermore, the compression of the a-axis in the Friedrich et al. (2007a) experiment is much easier than that in this study. We infer that this is probably due to the different pressure ranges between these two studies. Because the O-H bond is almost parallel to the a-axis, the distance between O and H decreases more with increasing pressure, resulting in a greater axial compressibility of the a-axis (Friedrich et al., 2007a). Compared with the compression of the a-axis with increasing pressure, the compression of the b-axis and c-axis are much smaller. The probable reason is that the compression of the a-axis is mainly hydrogen bonding compression, while the compression of the b-axis and c-axis is due to the rotation of the O1-Al-O2 octahedral axis angle and the shortening of Al-Al and O-O bonds (Friedrich et al., 2007a; Li et al., 2010), respectively. Although the compressibility of diaspore obtained by Mao et al. (1994) (Ka0: Kb0: Kc0 = 1.00:2.45:2.40, βa:βb:βc = 2.45:1:1.01) shows that the a-axis is the easiest to compress and the b-axis instead of the c-axis is the most difficult to compress, the b-axis is only slightly more difficult to compress than the c-axis. The b-axis and c-axis compression in previous studies are consistent with the results of this study within the uncertainty. Therefore, the obtained axial compressibility in this study should be reliable.
The obtained volume thermal expansion coefficient of diaspore in this study is αV = 2.7 (2) × 10–5 K−1. Table 3 summarizes the thermal expansion coefficient of diaspore obtained in this study and previous studies. As shown in Table 3, Pawley et al. (1996) obtained a volume thermal expansion coefficient of 4.0 (1) × 10–5/K through the powder XRD method at a maximum temperature of 533 K. However, using the same method, Grevel et al. (2000) obtained a volume thermal expansion coefficient of 2.8 × 10–5/K at P–T conditions up to 7 GPa and 1073 K, which is 30% smaller than the result obtained by Pawley et al. (1996). Subsequently, Sugiura et al. (2018) used the single-crystal XRD method to obtain the axial thermal expansion coefficient at the maximum temperature of 698 K but did not give the volume thermal expansion coefficient. The recalculated volume thermal expansion coefficient is 3.0 × 10–5/K by fitting the data of Sugiura et al. (2018) with Fei’s thermal expansion equation, which is 25% lower than the result obtained by Pawley et al. (1996).
The obtained volume thermal expansion coefficient in this study (2.7(2)×10–5/K) is consistent with the results of Sugiura et al. (2018) (3.0 × 10–5/K) and Grevel et al. (2000) (2.8 × 10–5/K) within their uncertainties. Compared with the results of other studies, the volume thermal expansion coefficient obtained by Pawley et al. (1996) is abnormally larger. As shown in Figure 6, the experimental results of Pawley et al. (1996) showed a poor relationship between V/V0 and pressure; in particular, the experimental data points at 110°C significantly deviated from the trend line. Therefore, the volume thermal expansion coefficient obtained by Pawley et al. (1996) was relatively inaccurate. Thus, the volume thermal expansion value of diaspore at 300 K is in the range of 2.7–3.0 × 10–5/K.
The axial thermal expansion ratios at 300 K obtained in this study, by Pawley et al. (1996), and by Sugiura et al. (2018) are αa: αb: αc = 1.47:1:1.10, 1.45:1.18:1, and 1.17:1.07:1, respectively, which shows a slight axial thermal expansion anisotropy., mainly due to the different bond distances of Al-O1 and Al-O2 in diaspore. With increasing temperature, the thermal expansion rates of Al-O1 and Al-O2 are not consistent, resulting in the distortion of the AlO6 octahedron instead of the regular octahedron (Sugiura et al., 2018). This study is consistent with previous studies and shows that the thermal expansion along the a-axis is the largest. According to analyses of Sugiura et al. (2018), the volume thermal expansion of diaspore is larger than that of the AlO6 octahedron. The excess expansion comes from the expansion of the hydrogen bond channel formed by O2…O1, which is basically parallel to the a-axis. Thus, the axial thermal expansion along the a-axis is greater than that along the b– and c-axes. However, the axial thermal expansion ratio (1.17:1.07:1) among the a-axis, b-axis and c-axis obtained by Sugiura et al. (2018) is slightly lower than that of Pawley et al. (1996) (1.45:1.18:1). Sugiura et al. (2018) considered the main reasons for the difference to be the relatively narrow (298–533 K) temperature range and relatively large unit-cell parameter error of Pawley et al. (1996). Moreover, the temperature range of this study (300–713 K) is similar to that of Sugiura et al. (2018) (300–698 K), and the errors of unit-cell parameters in this study are also relatively small. However, contrary to the results of previous studies, the thermal expansion of the b-axis is slightly less than that of the c-axis in this study. Considering that the thermal expansion along the b-axis and c-axis are similar, we infer that our diaspore sample contains 0.3 mol% Fe, which is different from previous studies. The small amount of Fe may cause a slight change in axial thermal expansion, resulting in the thermal expansion of the b-axis being less than that of the c-axis. In addition, Figure 6 shows that the axial thermal expansions of Sugiura et al. (2018) are larger than those of this study; however, the axial thermal expansion coefficients of the a-axis and c-axis given by Sugiura et al. (2018) are smaller than those of this study (Table 3). The main reason for this difference may be the different fitting methods between these two studies. Thus, we refitted the high-temperature XRD data of Sugiura et al. (2018) using Fei’s thermal expansion equation and obtained αa = 1.2 × 10–5/K, αb = 1.0 × 10–5/K, and αc = 1.0 × 10–5/K, which is close to the findings of this study (αa = 1.13 × 10–5/K, αb = 0.77 × 10–5/K and αc = 0.85 × 10–5/K).
P-T Phase Diagram of Diaspore and its Stability Under High P–T Conditions
Water is one of the main volatile components in the Earth’s interior and can significantly affect the physical and chemical properties of the main minerals in the deep Earth (Bindi et al., 2020; Brovarone et al., 2020; Doucet et al., 2020; Pieczka et al., 2020; Thompson et al., 2020; Yang et al., 2020). Subducted slabs bring water into the deep Earth, which has a profound influence on the geodynamics of the Earth’s interior, such as earthquakes and the formation of island arc magma (Zheng et al., 2016; Zheng and Zhao, 2017; Zheng, 2019; Lempart et al., 2020). Since hydrous minerals are believed to exist in subduction plates and subduct into the mantle together with slab components, the P–T stability field of hydrous minerals under high P–T conditions is vital for the proposed transportation of water into the deep Earth (Chen et al., 2020; Thompson et al., 2020). Moreover, slab geotherms strongly affect the depth at which hydrous minerals dehydrated in subducting slabs, and thus affect water transport in the deep Earth. For example, under the P-T conditions of cold subduction, especially ultracold subduction, hydrous minerals can survive under greater depth in cold subducting slabs, which can transport a large amount of water into the middle and lower part of the upper mantle, even into the transition zone and lower mantle, thus exerting a profound influence on the geological processes of the deep Earth (Wunder et al., 1993a; Pawley, 1994; Holland et al., 1996; Ono, 1999).
Diaspore is an accessory mineral in a metabauxite (metabauxite make up ∼11% of continental sedimentary rocks) (Theye et al., 1997; Gao et al., 1998), we roughly speculated that the content of diaspore in the subduction zone is no more than 0.11 vol%. Diaspore is an important hydrous mineral in subduction zones and the high P-T stability of diaspore has been investigated widely. The experimental results of Yoshino et al. (2019) indicated that the dehydration temperature of diaspore increases monotonically from 1123 to 1523 K with increasing pressure from 5 to 15 GPa, while in the experiments of Grevel et al. (2000) diaspore was stable at ∼1073 K under 7 GPa. Figure 11 shows the stability region of diaspore at high P–T conditions (Ohtani et al., 2001; Sano et al., 2004; Holland and Powell, 2011; Yoshino et al., 2019). Under normal subduction zone geothermal gradient conditions (Pollack and Chapman, 1977; Artemieva and Mooney, 2001; Zang et al., 2002), diaspore breaks down into corundum and fluid above ∼180 km (Wunder et al., 1993b; Pawley et al., 1996; Feenstra and Wunder, 2002; Yoshino et al., 2019). However, in the case of hot subduction conditions, such as the Aleutian subduction zone, diaspore will be transformed into δ-AlOOH at 1273 K and 20.9 GPa (Suzuki et al., 2000; Vanpeteghem et al., 2002; Yoshino et al., 2019), while under ultracold subduction conditions, such as the Tonga subduction zone, diaspore can be stabilized to at least 12.5 GPa (Friedrich et al., 2007a; Duan et al., 2018; Yoshino et al., 2019).
Furthermore, the density profile of diaspore was also modeled using its thermal EoS parameters and then compared with other major hydrous minerals (epidote, lawsonite and antigorite) and the PREM model (Figure 12). As shown in Figure 12, the density profile of diaspore is ∼8 and ∼24% higher than lawsonite and antigorite, respectively, but ∼3% lower than epidote. The density profile of diaspore is ∼4% higher than that of the PREM model above a depth of 410 km. Although diaspore content is low in subducting slab (no more than 0.11 vol%), it might contribute to subduction (Li et al., 2021). However, below a depth of 410 km, the density profile of diaspore is ∼5% less than that of the PREM model; thus, diaspore may stagnate along the plate at the top of the mantle transition zone.
Our high P–T experiment indicates that diaspore is metastable up to ∼10.9 GPa and 700 K (Figures 10, 11). Combined with the density profile of diaspore (Figure 12), the density of diaspore, eclogite (40% garnet + 55% omphacite + 5% epidote) and harzburgite (74% olivine + 21% orthopyroxene + 3% clinopyroxene + 2% spinel) are higher than ambient mantle (PREM model). Furthermore, the density of diaspore is slightly higher than that of harzburgite but lower than that of eclogite. However, in view of the density of diaspore is higher than ambient mantle (PREM model), diaspore still can subduct together with subduction slabs. To sum up, we believe that diaspore could contribute to slab subduction and bring water into the Earth’s interior (at depth approximately 390 km under cold subduction conditions based on existing experimental data) (Ye et al., 2021). Moreover, diaspore dehydrates and releases free H2O when the subducted slab is heated by the surrounding mantle to a higher temperature. The released H2O may potentially affect the geochemical behavior of the upper mantle (Gruetzner et al., 2018).
FIGURE 10. Typical X-ray diffraction patterns of diaspore from single X-ray diffraction experiments at high pressure and high temperature.
FIGURE 11. P-T stability of diaspore. The content of the Figure 10 is divided into four aspects: metastable regions of diaspore, stable region of diaspore, stable region of δ-AlOOH and stable region of Al2O3+H2O. The black circles are the data from this study, while other symbles (including squares, diamond squares, white circles, and grey circles) represent data of previous studies. We add different geothermal gradients (Tonga slab geotherm, Aleutian slab geotherm and normal geotherm) to observe the stability of diaspore. We draw the stable region of diaspore according to Haussuhl (1993), Mao et al. (1994), Xu et al. (1994), Pawley et al. (1996), Grevel et al. (2000), Ohtani et al. (2001), Winkler et al. (2001), Sano et al. (2004), Friedrich et al. (2007a, and 2007b), Li et al. (2010), Sugiura et al. (2018), Yoshino et al. (2019) and this study. The left and right metastable areas of diaspore are determined by the experiments of Yoshino et al. (2019) and Jiang et al. (2008), respectively. The dark-shaded area represents the stable region of diaspore, while light-shaded areas represent metastable regions. The boundary between δ-AlOOH and corundum + fluid is determined by Yoshino et al. (2019), Ohtani et al. (2001) and Sano et al. (2004). The dotted lines represent the Tonga slab geotherm (blue), Aleutian slab geotherm (red) (Bina and Navrotsky, 2000), Normal geotherm (black) (Pollack and Chapman, 1977), and adiabatic geotherm (green), respectively (Artemieva and Mooney, 2001; Zang et al., 2002).
The P-V and T-V relationships and P-T stability of diaspore were investigated using in situ synchrotron-based single-crystal XRD and Raman spectroscopy methods up to 713 K and 24.4 GPa in this study. There was no phase transition in the maximum P-T conditions in this study. We fitted unit-cell volume and unit-cell parameter data with third-order Birch–Murnaghan EoS and obtained V0 = 118.15 (4) Å3, a0 = 4.3988(9) Å, b0 = 9.421 (2) Å, c0 = 2.8474 (4) Å, KV0 = 153 (1) GPa, Ka0 = 137 (5) GPa, Kb0 = 169 (7) GPa and Kc0 = 178 (6) GPa for diaspore. In addition, using Fei’s thermal expansion equation, we obtained the thermal expansion coefficients αV = 2.7 (2) × 10–5 K−1, αa = 1.13 (9) × 10–5 K−1, αb = 0.77 (5) × 10–5 K−1, and αc = 0.85 (9) × 10–5 K−1 for diaspore. Finally, combining the results in this study with those of previous studies, we plotted the P-T phase diagram of diaspore and concluded that diaspore can subduct to a depth of ∼390 km under cold subduction conditions (temperature gradient <5 K/km) based on existing experimental data.
